Call Flows

Build complex conversations, connect with your tools and more with flows

Flows are the visual blueprints that define exactly how your AI phone agent behaves, from the greeting, to data collection, to decisions, actions, and the final call outcome. They describe what the agent says, what it asks, what it stores, what APIs it calls, and how the conversation moves forward.

What Are Flows?

A Flow is a visual representation of a live phone conversation. It controls the entire lifecycle of a call from greeting to resolution.

Flows are made of several core elements:

1. Blocks

Blocks are the individual steps in your workflow. Each block performs one clear function, such as:

• Speaking to the caller (Talk)
• Collecting information (Collect).
• Applying logic or conditions (Filter, Time Filter)
• Calling an external system (API Request, Google Sheets, Code)
• Transferring or ending a call (Transfer Flow, End Call)
• Sending messages (Email, SMS)
• Running post-call actions.

Blocks are intentionally focused complex behavior is created by connecting blocks together, not by overloading a single block.

2. Connections & Exit Conditions

Connections determine how the conversation moves forward.

An edge can represent:

• A simple continuation (always go next)
• A conditional path (only proceed if a condition is met)
• An exit outcome (success, failure, escalation, etc)

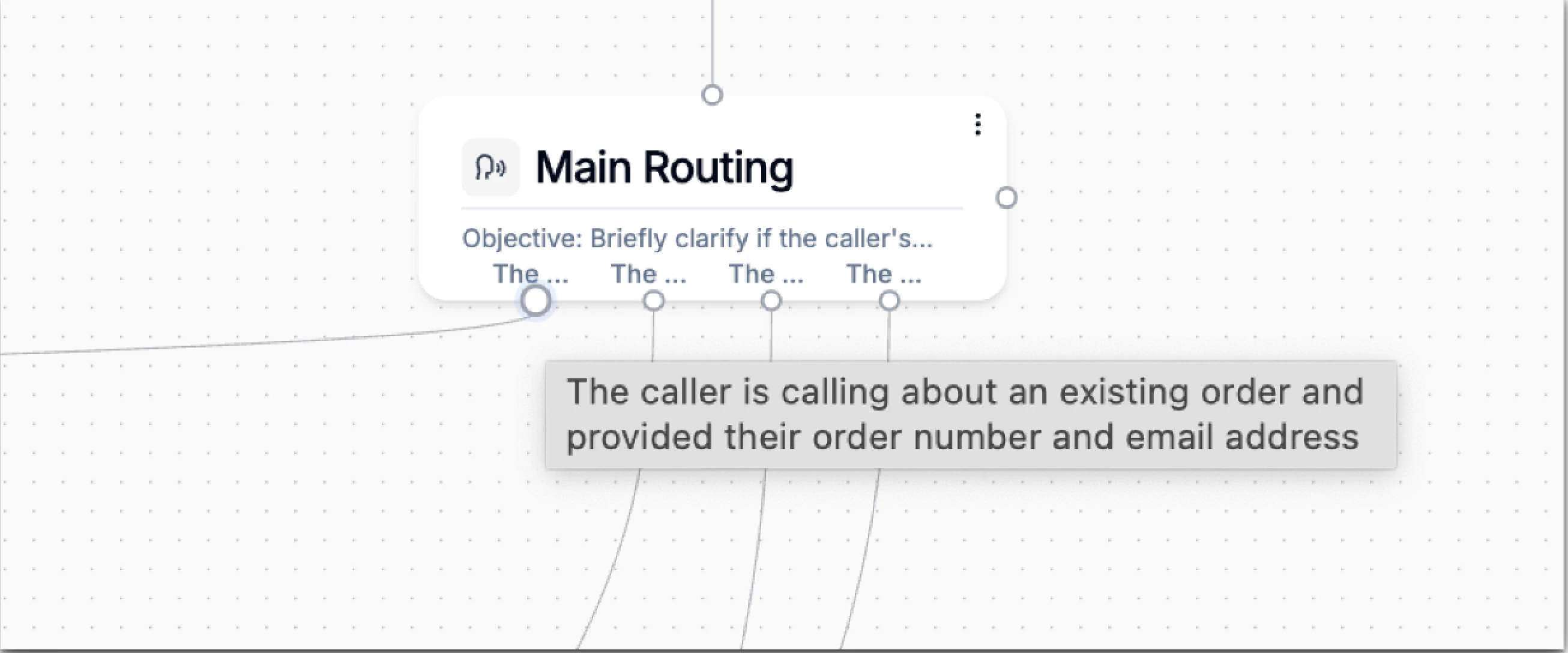

Exit condition tooltips

When you hover over a connection handle or edge, Phonely now displays a tooltip explaining which condition is applied, why the edge exists or what will cause the call to take that path.

This makes large or complex flows easier to understand and debug at a glance.

3. Variables

Variables store information during the call, such as:

• Caller-provided inputs.
• API responses.
• System-generated data (timestamp, outcomes, etc.)

They act as the agent’s short-term working memory for the duration of the call.

Canvas Controls

Phonely includes several canvas tools to help you navigate and organize large workflows.

You’ll find tools for:

• Add new blocks
• Using sticky notes
• Organizing blocks
• Replacing invalid variables
• Undo/Redo actions
• Viewing your change history

See the dedicated toolbar quick actions guide for more details.

Create a Flow

1. Go to the agent design page.
2. Click the + to create a new workflow or select an existing workflow and click the Edit button.

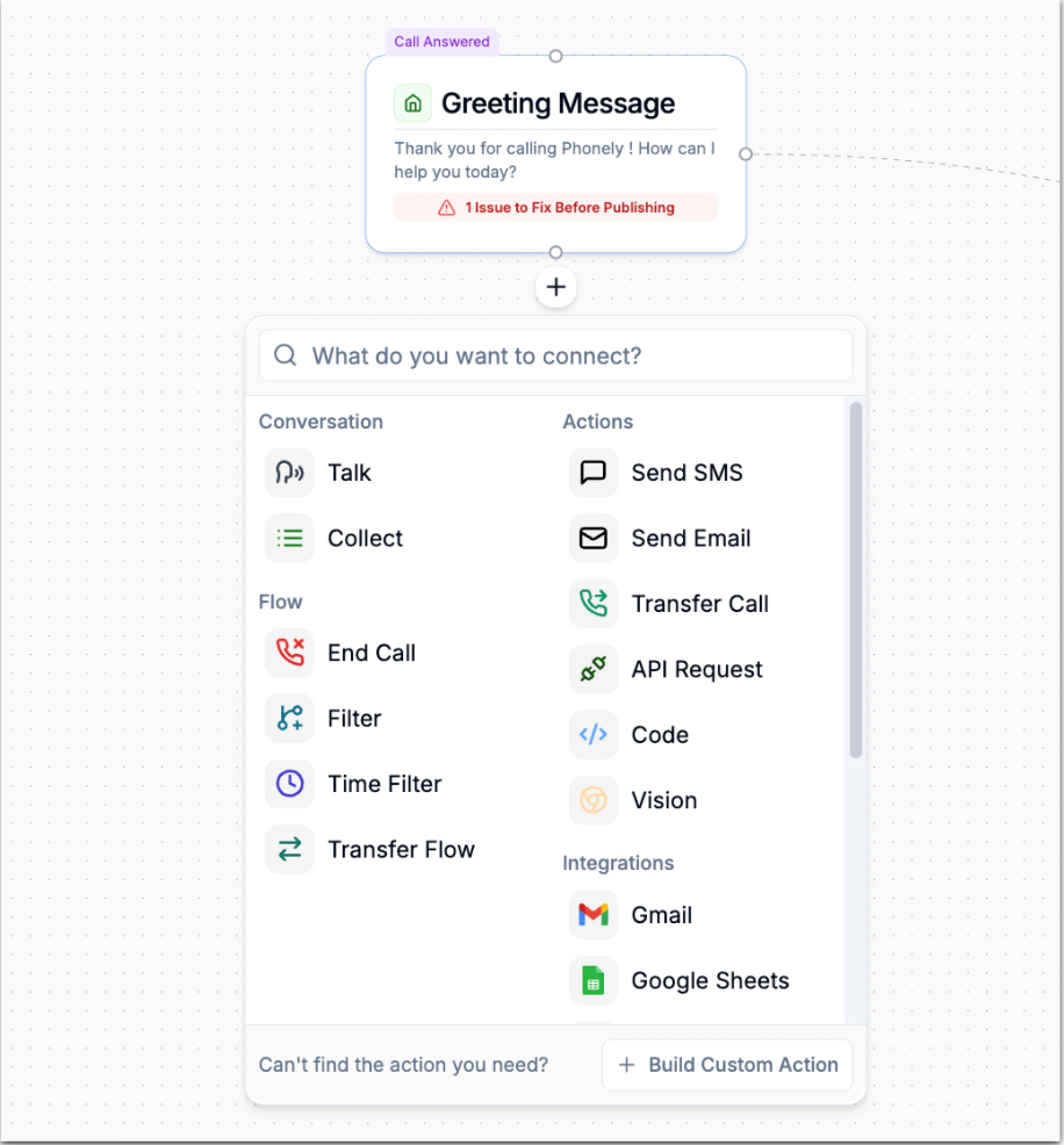

3. Click the “+” button between existing blocks or at the end of a chain to insert a new block.
4. New blocks are auto-positioned to keep the layout readable.

   The canvas is where you visually design and manage your workflow.

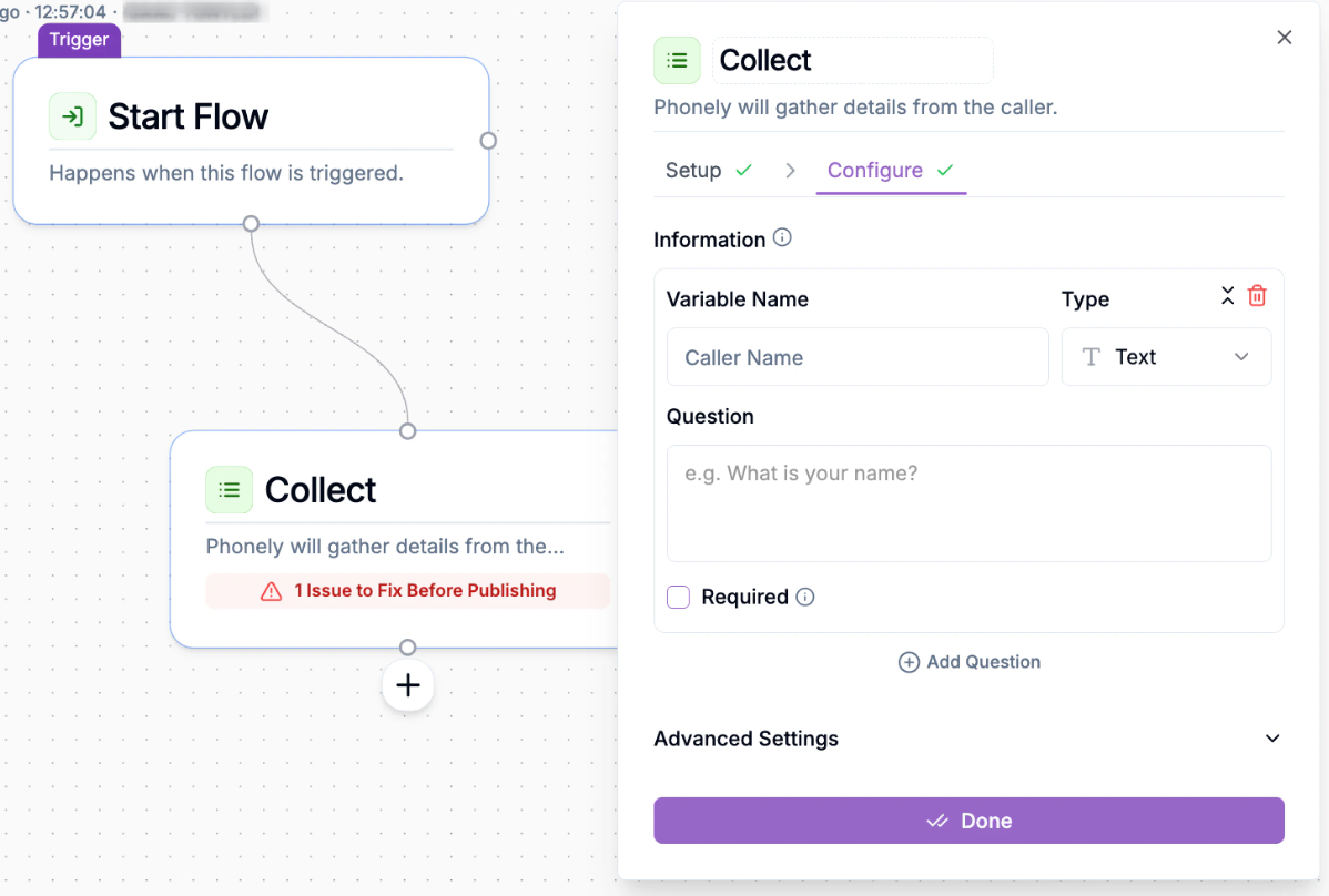

5. Click any block in your flow to open its configuration panel.

   Each block contains different settings, and the options you see will depend on the type of block you’re setting up.

Blocks have different setup and configuration requirements. For example, a Talk block includes questions and answers, Collect blocks include questions and variables, while API Request blocks include payload, headers, and response mapping.

6. Connect blocks. You can change connections between blocks by hovering over an edge clicking the X button, and then place your cursor over the output node of one block and drag the edge to connect to the input node of another block.
7. Save your changes. Every save creates a new version you can review or revert.
8. Publish when ready. Publishing makes the version live for real callers.

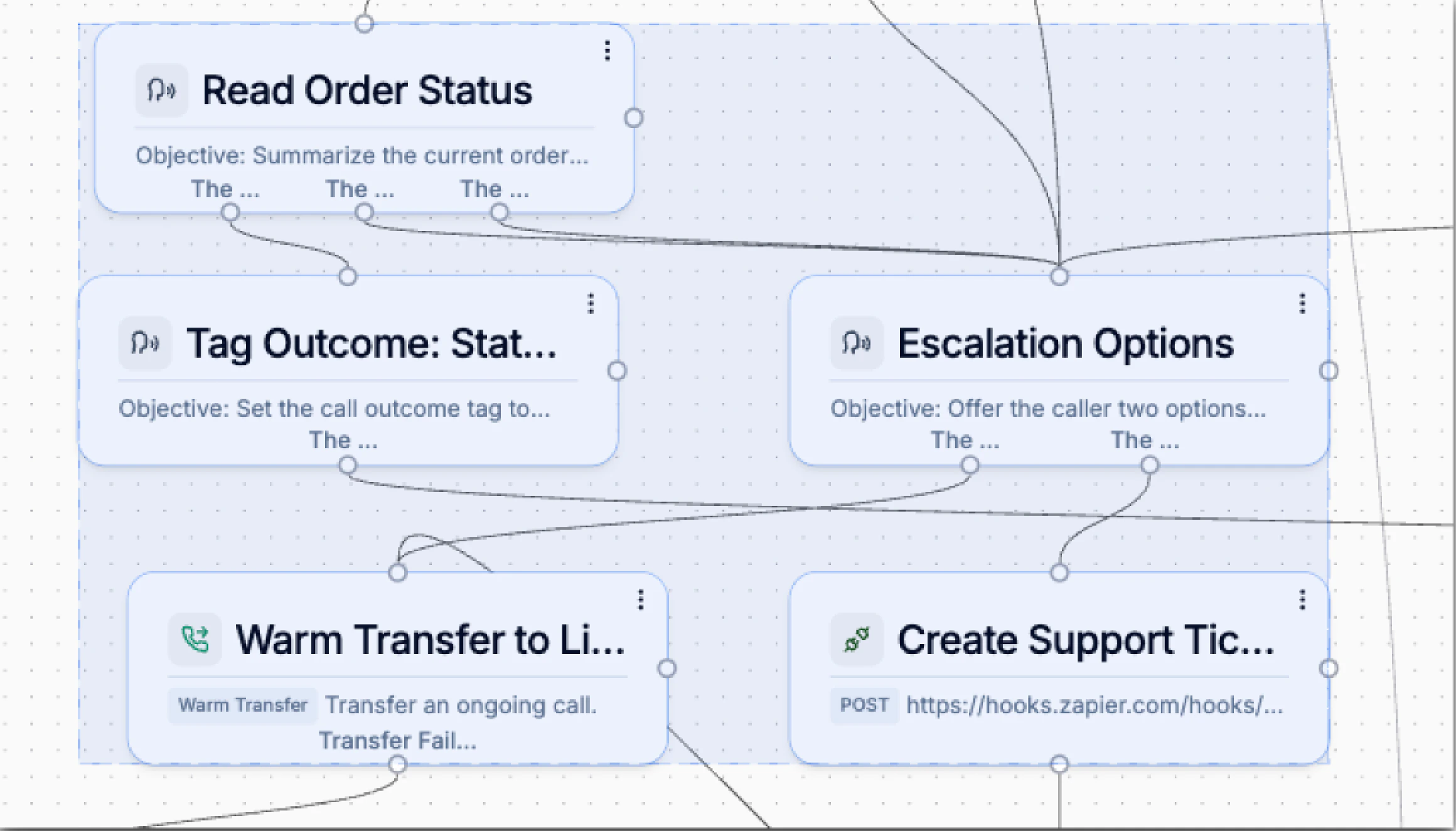

Copy & Paste Across Tabs

You can now select one or multiple blocks. Copy them and then paste them into another open Phonely tab. This allows you to reuse logic across flows and build variations without starting from scratch.

Configure Blocks

Click any block to open its configuration panel. Each block type exposes only the settings that matter, for example:

• Talk blocks → prompts, voice settings
• Collect blocks → questions, variables, validation
• API blocks → endpoints, headers, payloads, mappings

This keeps configuration focused and avoids unnecessary complexity.

Save, Version, and Publish

Every save creates a new version. Versions can be reviewed or reverted.

When publishing, review the version details and confirm the version you want to make live for callers.

Call variables

What are call variables?

Variables are dynamic containers that persist for the duration of the call - like the agent’s working memory.

How to set variables

Use Collect blocks for caller input, API Request blocks for external data, or add custom variables via the Variable modal.

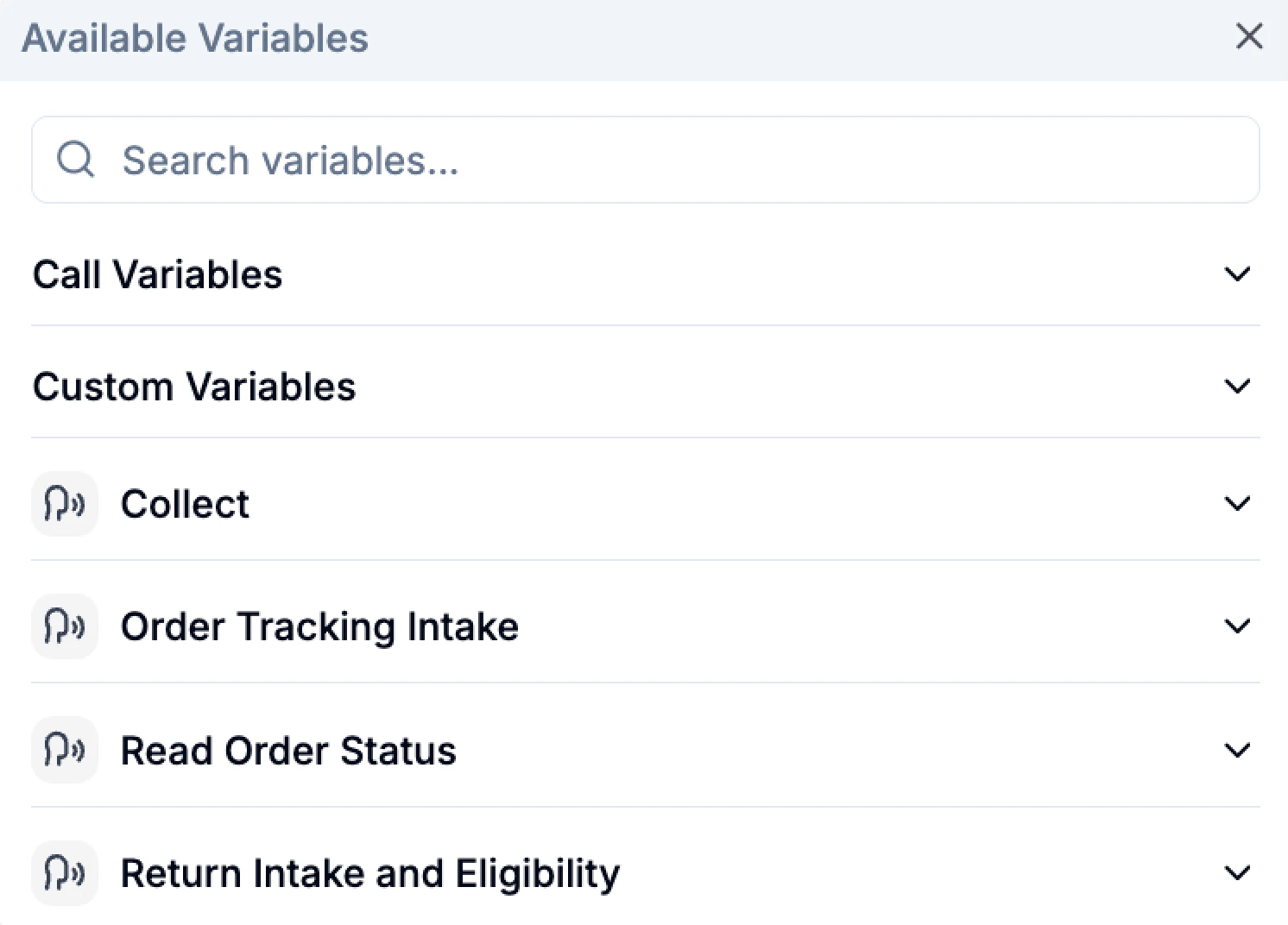

How to access variables

Reference by name with @variable_name or select from the Variable modal. Use them in prompts, conditions, and API payloads.

Variable types

Variables in Phonely can store different types of data. Choose the appropriate type when collecting information from callers or storing data from API responses.

Type	Data Type	Description
text	string	General text
number	number	Numeric values
date	ISO date	Dates in ISO format
time	HH:mm	Times in 24-hour format
name	string	Caller names
email	string	Email addresses
phone	string	Phone numbers
url	string	Web addresses
address	object	Street, city, region, postal code, country
currency	number	Monetary values
percentage	number	Percent values
duration	string	Time spans
custom	any	User-defined schema

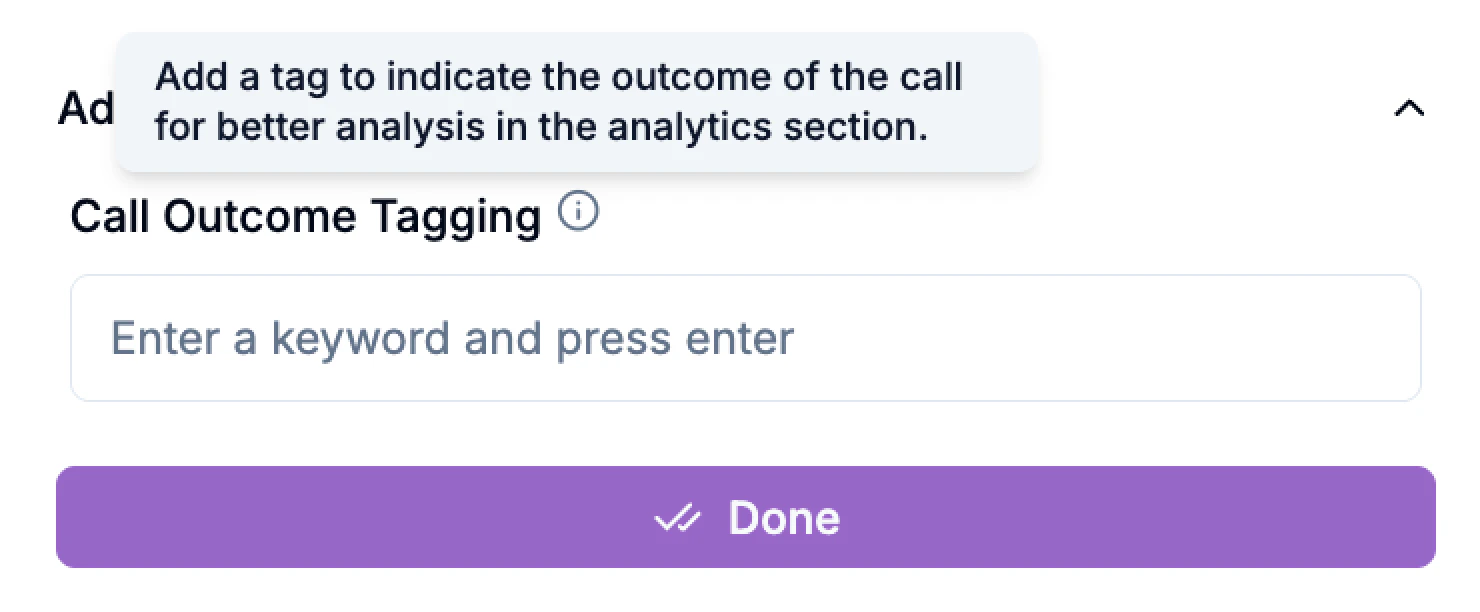

Call outcome tagging

Outcome tags enable analytics, reporting, and automations after the call ends.

Automatic

System applies defaults like completed, failed, lead_qualified, appointment_schedule, or transferred.

Custom

Set custom tags in End Call blocks for downstream workflows.

Conditional

Apply tags only when conditions on variables are met.

Some examples of tags that you can use include: appointment_scheduled, lead_qualified, customer_satisfied, escalation_needed, no_show_followup, etc.

Testing & best practices

Simulation

1. Upload a recording

   Validate recognition and branch logic with real audio.

2. Simulate variables

   Seed test values for @name, @phone, etc.

3. Path testing

   Walk each branch and confirm expected prompts.

4. Error testing

   Force empty/malformed inputs to validate fallbacks.

Live

1. Use test numbers

   Route calls to non-production DIDs.

2. Monitor in real time

   Watch transcripts and events in the dashboard.

3. Measure performance

   Track response times, success rates, transfers.

4. A/B versions

   Compare alternative prompts/flows.

Design guidelines

Conversation design

Keep prompts natural and concise, offer clear next steps, plan for interruptions, and confirm critical data before proceeding.

Technical hygiene

Test all branches, add fallback edges, watch performance metrics, and keep external dependencies resilient.

Variable management

Use descriptive names, validate inputs, handle missing data gracefully, and scrub sensitive data when not needed.

Troubleshooting guide

Flow not responding

Verify block connections, confirm required variables are set, test blocks individually, and check API auth/endpoints.

Poor call quality

Review Talk block voice settings, try alternate voices, adjust rate and pauses, and check variable interpolation.

Transfer failures

Confirm destination numbers/agents, test fallbacks, and verify timing and availability windows.

Variable issues

Check spelling/case, ensure values are set before use, validate data types, and test prompts using variables.

API integration problems

Test endpoints in isolation, verify credentials and headers, confirm request/response schemas, and watch rate limits/timeouts.

Conclusion

You now have the essentials to design reliable, natural AI phone experiences:

1. Start simple

   Build with Start Call, Talk, and End Call

2. Add interaction

   Use Collect and Question blocks.

3. Integrate systems

   Add API Request and conditional edges.

4. Optimize

   Use Filter and Time Filter to route intelligently.

5. Test thoroughly

   Apply simulation and live testing practices above.
